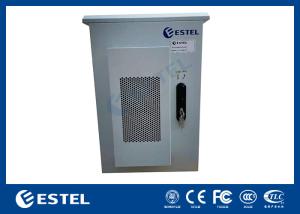

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space

Name: Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space
Brand: ESTEL
Price: 1 USD

Quality Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space wholesale

Brand Name : ESTEL

Model Number : ET6565125-BA

Certification : ISO9001, CE, RoHs

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, T/T

Supply Ability : 6000 pcs/month

Delivery Time : 4-6 weeks

Packaging Details : wooden case with pallets

Material : Galvanized Steel, Double Walls With Heat Insulation

Sensors : Smoke, Temp. & Hum. Sensor

Feature : Waterproof

Parts : LED lights with switch

Ingress Protection : IP55

Door : 1 Front Door

Contact Now

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space Applications

Pole or Wall Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space Feature

The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
The cabinet use DC48V 100W peltier air conditioner and fans for cooling.
The cabinet includes -48VDC LED lamp for illumination.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable inlets individually for power cable, signal cable and optical cable at the bottom of cabinet.
All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
The cabinet use standard 19” rack installation method.

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Size: W×D×H 450×300×700mm Internal Size: W×D×H 357×214×601mm (19”, 7U)
	Layout	One compartment
	Equipment Installation Method	19” standard rack
	Door	With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
	Material	1.Galvanized steel; 2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
	Structure	Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	DC48V TEC air conditioner
Lighting	LED lamp	48V LED lamp
Temperature	Temperature	Working Temperature: -20°C ~ 55°C
		Storage Temperature: -40°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1124 × (1±5%)W/m2

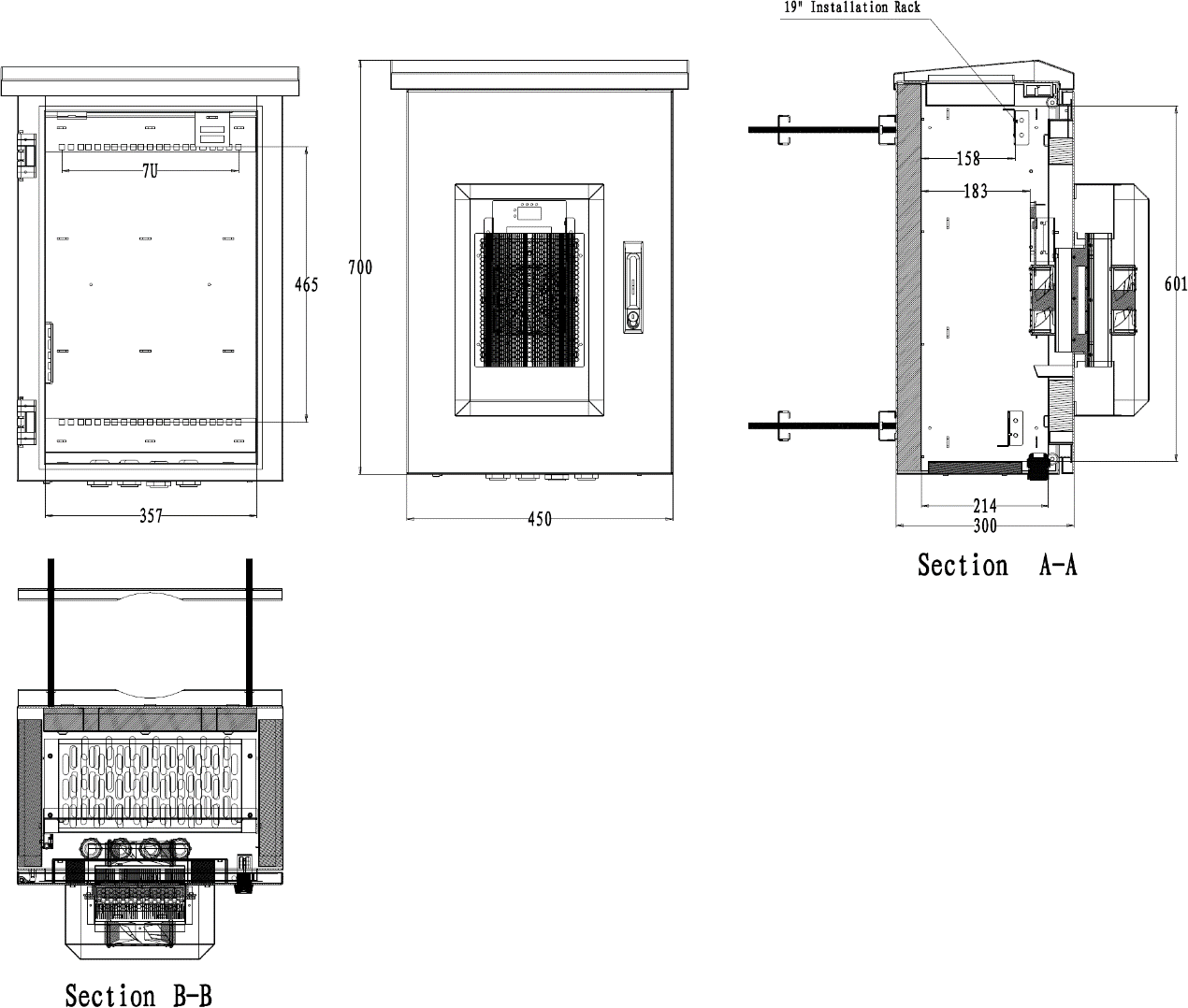

Dimension Diagram

Cabinet External Size: 450mm×300mm×700mm (W×D×H).

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space

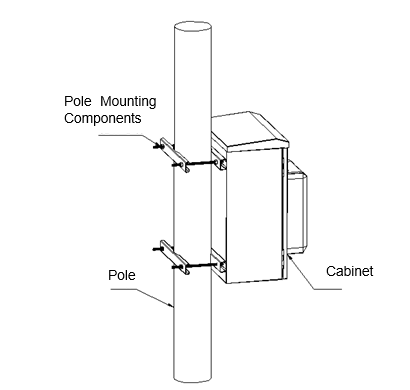

Cabinet Installation

Install the cabinet as the following diagram(also support wall mounted).

Wall Pole Mounted Outdoor Telecom Cabinet With TEC Cooler 19inch Rack 7U User Space
