(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm (2) Layout: the upper part is 20U 19” installation rack, the lower part is two battery shelves. (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Material: galvanized steel, single wall with heat insulation. |
| 2 | Air Conditioner | 1 | Set | Cooling Capacity: 1500W; Power Supply: AC110V 60HZ |
| 3 | Fan | 1 | Set | Two DC48V fans with one temperature controller |
| 5 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
| 8 | Package | 1 | Set | Wooden Case |
2. Advantages
(1) High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance
(2) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
Two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
3. Applications
The ET9090210-UP outdoor telecom cabinet is for holding telecom equipment, power system and batteries, mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

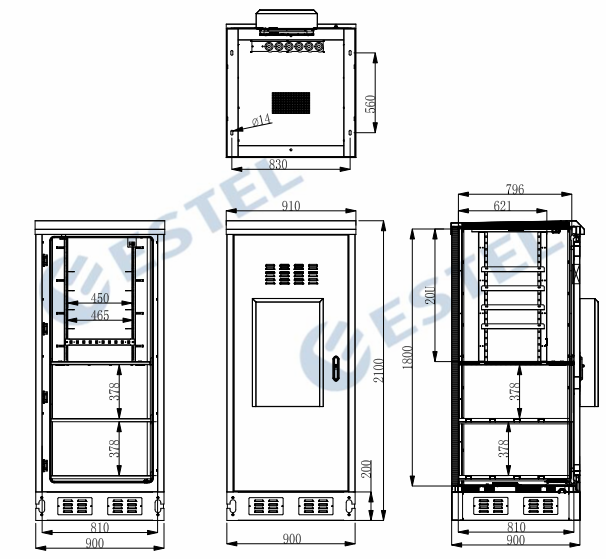

4. Dimension Diagram

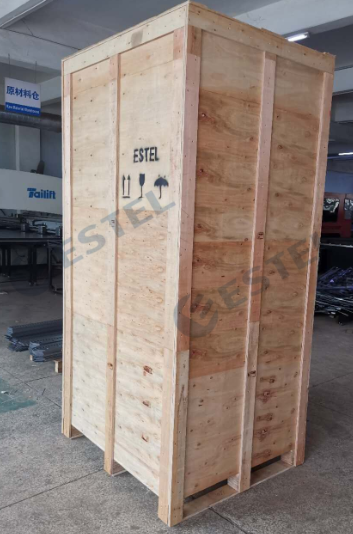

5. Wooden case package
