AC220V 500W Weatherproof Outdoor Telecom Cabinet One Front Door
1. Weatherproof Outdoor Telecom Cabinet Description
The main frame of the cabinet is made by welding,ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust. This cabinet is suitable to be used in telecommunication system,wireless network system for different applications.
2. Weatherproof Outdoor Telecom Cabinet Features
· Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
· Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
· Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
· Can be installed in any difficult places include the top of mountain and the roof of buildings.
· Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
·Support custom-made.
· All the cables used in the cabinet are made from flame-retardant materials. Access control, smoke, water immersion, temperature, humidity, and other comprehensive protection.
· Professional outdoor powder spraying, and strong weather resistance.
3. Weatherproof Outdoor Telecom Cabinet Application Area
· Satellite Communication
· Wireless Backhaul
· Cable Television
· Navigation & Positioning
· Military Installation
· Port Security
4. Technical Data Sheet
| Model | |
| Dimension | W×D×H 650×650×1000mm |
| 19” space | 16U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | Galvanized steel; single wall with thermal insulation |
| Color | RAL7035 grey |
| Installation method | Floor mount |
| Cooling | Air conditioner Power supply: AC220V 50Hz; Cooling Capacity: 500W |
| Ventilation system | Two AC220V fans with one temperature controller |
| Illumination | AC220V LED lamp |
| LED Lamp Switch | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP55 |
5. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1)External Dimension:H× W× D 1000× 650× 650mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set | Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
| 3 | Fan | 2 | Set | 220VAC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 | Package | 1 | Set | Wooden Case |

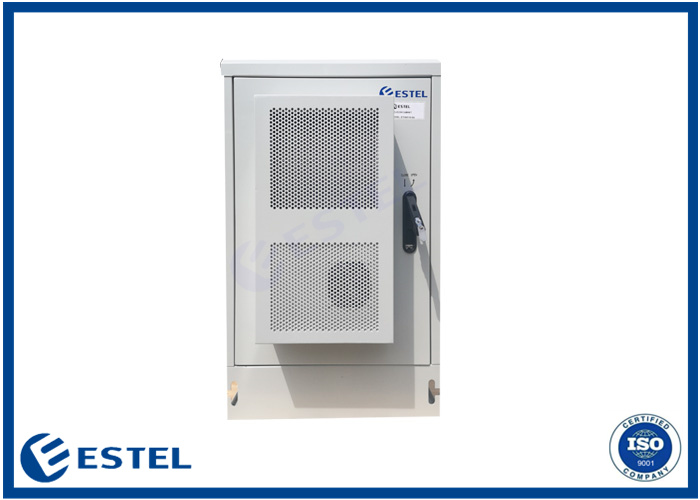

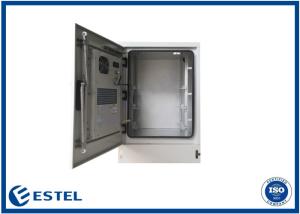

6. Cabinet Picture
7. Cabinet Description
7.1 Cabinet Material
The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.
7.2 Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.
8. Inside Mounting Racks Pictures
9. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

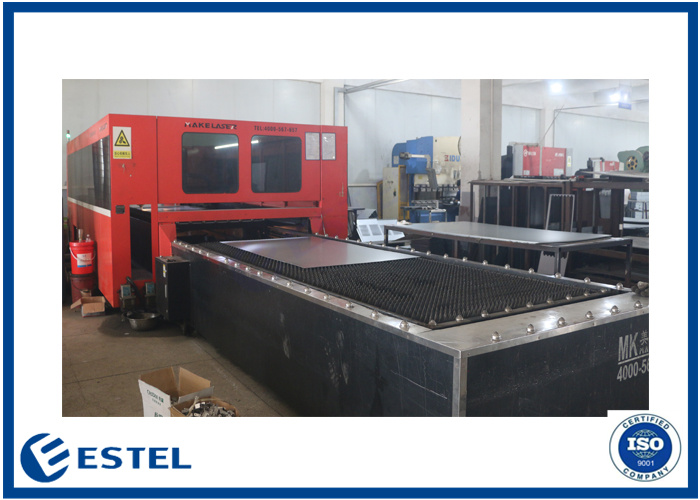

10. Production Pictures
