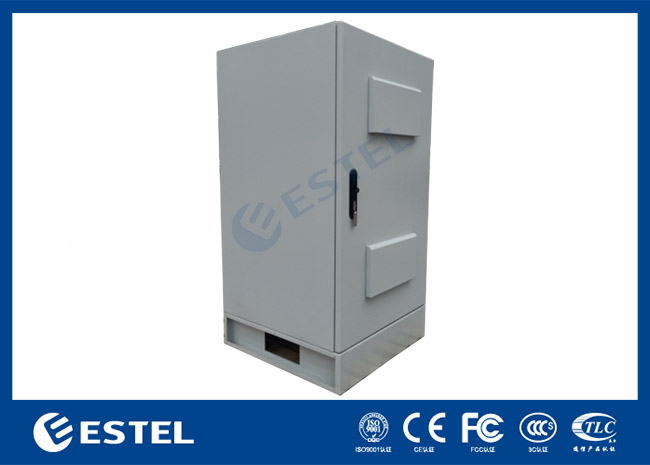

Sandwich Structure Waterproof Outdoor Telecom Cabinet With Environmental Sensors
Sandwich Structure Waterproof Outdoor Telecom Cabinet Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size: W×D×H 650x650x1250mm |
| Brand Name: ESTEL | Structure: double wall, with insulation |
| Model: ET6565125-BA | Cabinet Layout: one compartment, for installing 19” equipment and battery |
| Product Name: Outdoor Telecom Cabinet | Protection Level: IP55 |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cabinet Lock: anti-theft three point lock |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized Steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Cabinet Door: one front door |
| Color: grey (support custom made) | Sensors: Smoke sensor, Temp. & Hum. sensor. |
| Coating: anti-corrosion outdoor powder coating | Installation: Floor mounted |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 4,000 sets per month |
| Delivery Time: | 20 working days |
| Packaging Details: | wooden case |
Application
The ET6565125-BA Floor Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
Specifications
Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 650x650x1250mm |
| Layout | One compartment |
| Equipment Installation Method | 19” standard rack and battery shelf |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | 1.Galvanized steel; 2.Double walls with 20mm PEF heat insulation between two walls. |
| Structure | Welded |
| Ingress Protection | IP55 |
| Sensors | Environmental | Smoke sensor, Temp. & Hum. Sensor |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
| Storage Temperature: -40°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
Structure
The cabinet is made of hot dip galvanized steel, double walls structure. There are heat insulation between the two walls. It is easy for installation and with perfect sealing performance.
Features
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
4.3 All the cables used in the cabinet are made from flame retardant materials.
4.4 Perfect protection
● Integrated top cover, good seal, water proof
● Protection Grade: IP55
● High stability, anti-UV radiation
● Anti-corrosion
4.5 Heat Insulation
● Sandwich structure insulates the outer heat conduct, keeping temperature inside cabinet without abrupt change, anti-condensation, reducing heat management energy consumption.
● High performance PEF insulation material
Technical Specs
5.1Applicable environment conditions:
Environment temperature: -40°C ~ + 60°C
Environment humidity (RH): ≤95% (at + 40°C)
Air pressure: 70kPa ~ 106kPa
5.2 Material: hot dip galvanized steel
5.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
5.4 Cabinet load bearing: ≥600kg
5.5 Ingress protection: IP55
5.6 Flame retardance: comply with GB5169.7 test A
5.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
5.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V (DC) /1min.
5.9 Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
